PVC Cat 17 Valve Socket

PVC Cat 17 Valve Socket

PVC Cat 17 Valve Socket 15mm – 150mm

Product Description

SizeCtn QtyBag QtyCode
15mm140025TVS15
20mm100025TVS20
25mm60025TVS25
32mm40025TVS32
40mm30020TVS40
50mm20025TVS50
65mm751TVS65
80mm751TVS80
100mm401TVS100
150mm161TVS150
20mm x 25mm60025TVSR2025

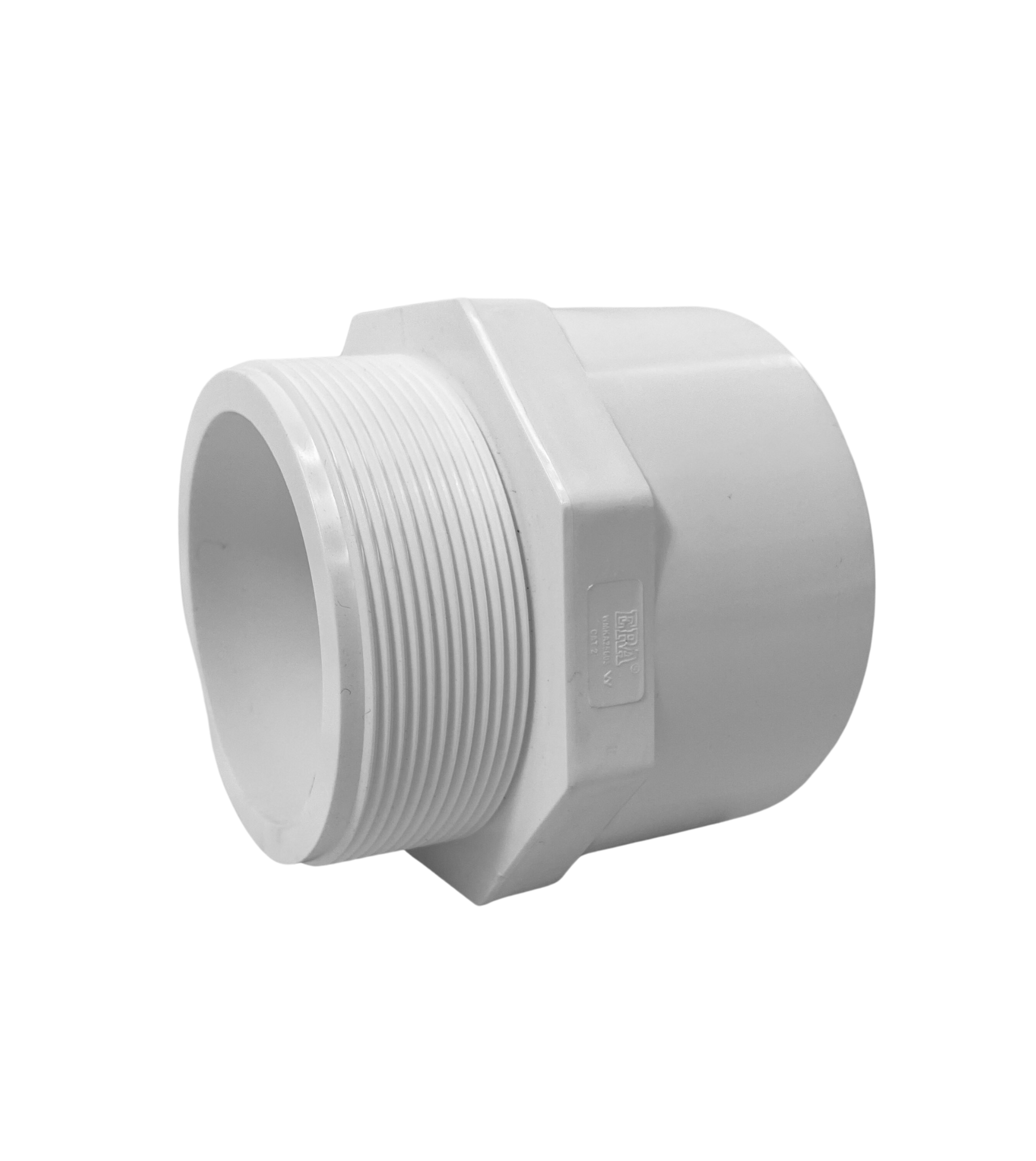

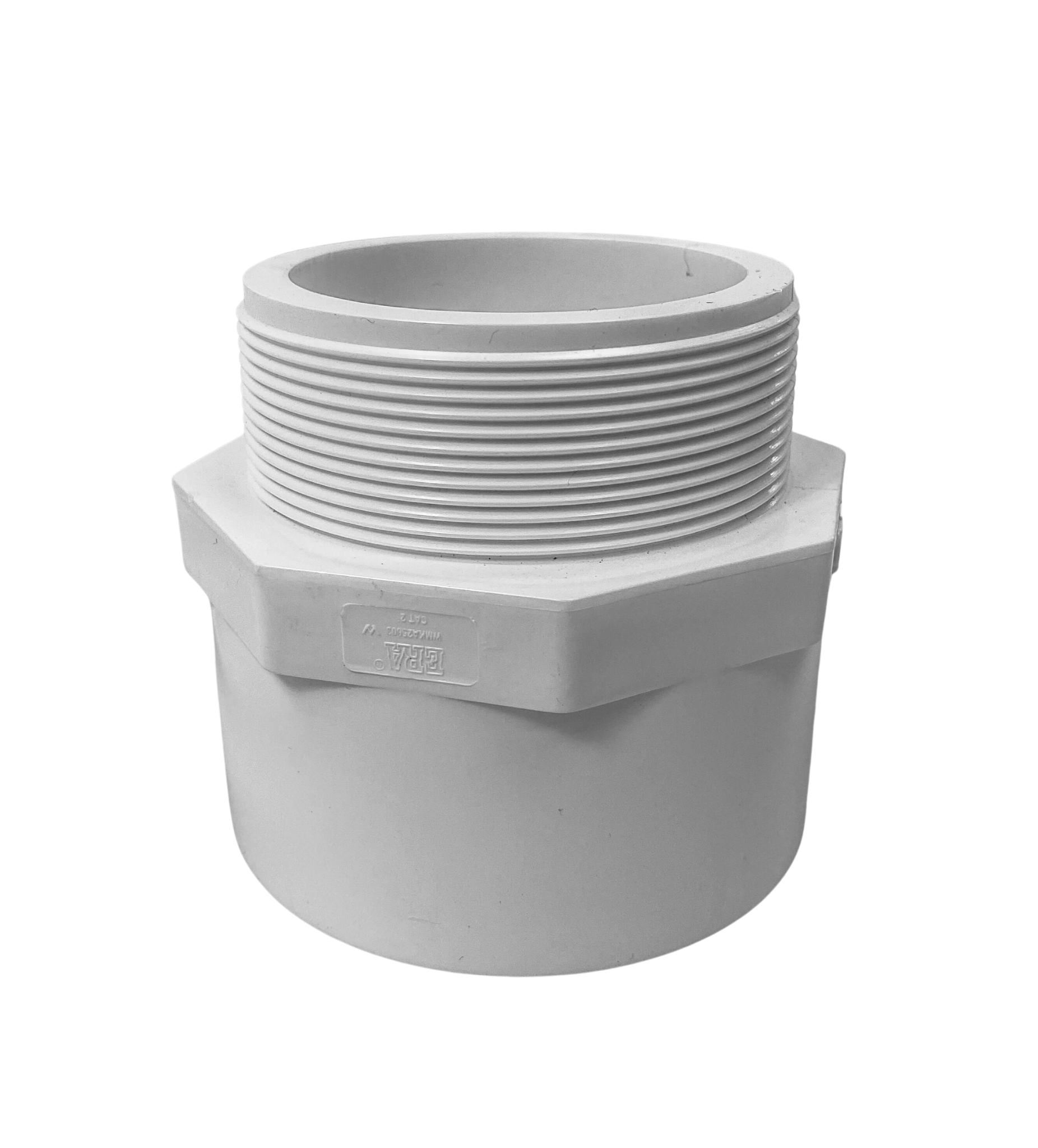

PVC Cat 17 Valve Socket

Fusion Qld offers a complete range of PVC pipe and fittings including the PVC Cat 17 Valve Socket. The PVC Cat 17 Valve Socket is high pressure fitting that offers a male BSP thread and female spigot, and varies in sizes from 15mm to 150mm.

Our extensive range of PVC pressure fittings are WaterMark and made to AS/NZS1477 standard guidelines. Pressure pipe and fittings have a maximum operating temperature of 60⁰C (140⁰F) and are white in colour.  Introduced into Australia in the early 1960’s, PVC is recognised as one of the top choices for water transportation. PVC pressure pipe and fittings are commonly used by customers in the pool building, plumbing and irrigation industries.

A pipe’s ‘PN’ or ‘Class’ rating refers to its wall thickness. It is categorized by the size of the pipe and also the thickness of the wall. The higher the PN rating, the thicker the wall. Thicker walls allow for applications that are higher in pressure. All PVC pipe has the same outer diameter, but it is the internal wall that varies in size. PVC systems are light in weight at half the weight of aluminium, and one-sixth the weight of steel. Due to its lightweight nature, PVC offers reduced transportation, handling and installation costs when compared to other applications. PVC pipe has smooth, seamless interior walls that require no special tools for cutting, which contributes to its ease of application.

Installation information

PVC pressure pipe and fittings can be installed using the solvent cementing joining technique and as a result are very easy to connect. Due to the ease of connection, PVC offers a lower installation cost. PVC is also known as UPVC or PVC-U and are manufactured from un-plasticised polyvinyl chloride polymer.

A comprehensive range of PVC pressure pipe and fittings varying in sizes from 15mm – 300mm is available from both our Fusion Queensland and Melbourne locations.
