Description

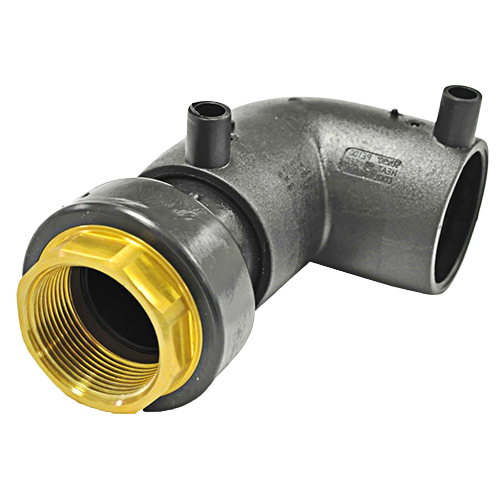

The EF 90° Transition Elbow – Female is commonly used to connect various types of metallic pipes to Polyethylene (PE) Pipe systems. A fabricated fitting comprising of a coated CW617N brass female BSP threaded spigot that is supplied with an Electrofusion 90° Elbow that has 4mm pins to suit 16 Bar Water and 10 Bar Gas connections designed to be fused together using an Electrofusion Machine.
The EF 90° Transition Elbow – Female is available in sizes from 20mm x 1/2″ – 63mm x 2″.
Materials and General Specifications
| Item | Specifications |
| Standards | AS/NZS 4129 | MS58 |
| Materials | Polyethelyne (PE) 100 | Coated CW617N Brass |
| Pressure Rating | PN16, Water | PN10, Gas |
| SDR | 11 - 17 |
| Fitting Details | Female BSP Thread |
Download the Technical Data Sheet
| Size | Code |
| 20mm x 1/2" | EFTEF9002012 |
| 25mm x 3/4" | EFTEF9002534 |
| 32mm x 1" | EFTEF900321 |
| 40mm x 1¼" | EFTEF90040114 |
| 50mm x 1½" | EFTEF90050112 |
| 63mm x 2" | EFTEF900632 |
The EF 90° Transition Elbow – Female is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
