Description

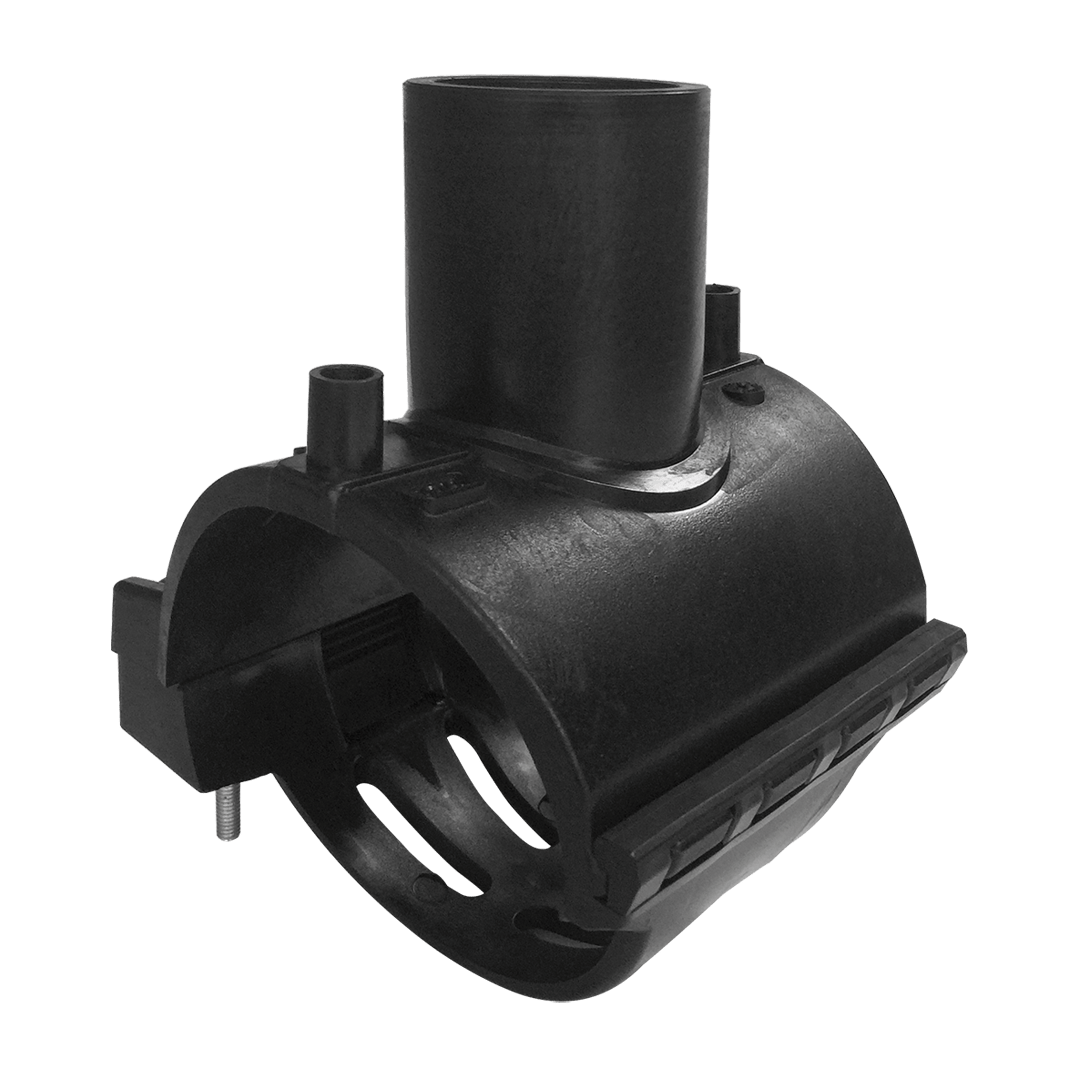

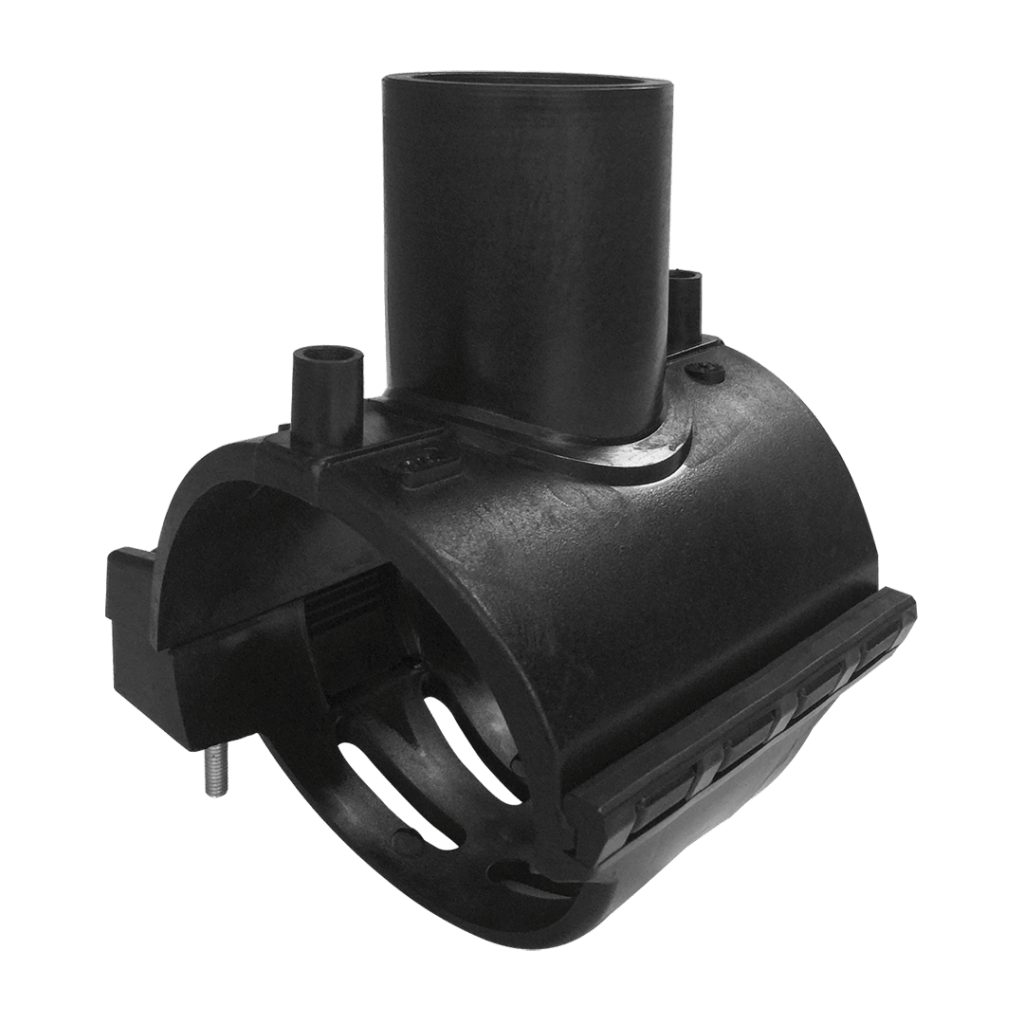

The EF Brand Saddle is used to branch off a High Density Polyethylene (HDPE) pipeline using an Electrofusion Welding Machine.
The EF Branch Saddle is available in sizes from 63 x 40mm – 250 x 90mm.
Materials and General Specifications
| Item | Specifications |
| Standards | AS/NZS 4129 |
| Materials | Polyethelyne (PE) 100 |
| Pressure Rating | PN16, Water | PN10, Gas |
| SDR | 11 - 17 |
| Size | Code |
| 63mm x 40mm | EFBSU06340 |
| 63mm x 63mm | EFBSU06363 |
| 75mm x 63mm | EFBSU07563 |
| 90mm x 63mm | EFBSU09063 |
| 90mm x 90mm | EFBSU09090 |
| 110mm x 63mm | EFBSU11063 |
| 110mm x 90mm | EFBSU11090 |
| 125mm x 63mm | EFBSU12563 |
| 125mm x 90mm | EFBSU12590 |
| 140mm x 63mm | EFBSU14063 |
| 160mm x 63mm | EFBSU16063 |
| 160mm x 90mm | EFBSU16090 |
| 160mm x 110mm | EFBSU160110 |
| 180mm x 63mm | EFBSU18063 |
| 180mm x 90mm | EFBSU18090 |
| 180mm x 110mm | EFBSU180110 |
| 200mm x 63mm | EFBSU20063 |
| 200mm x 90mm | EFBSU20090 |
| 225mm x 63mm | EFBSU22563 |
| 225mm x 90mm | EFBSU22590 |
| 250mm x 90mm | EFBSU25090 |
The EF Branch Saddle is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
