Description

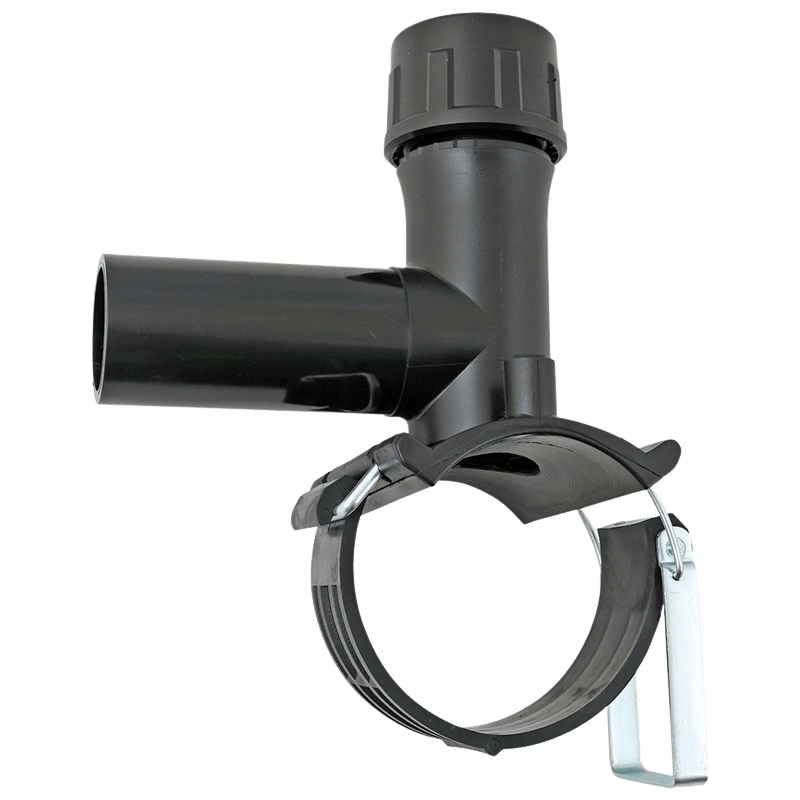

The EF Tapping Tee with Underclamp is commonly used to connect a water distribution main to the end user via a compressive force being applied between the fittings Fusion interface and the pipe. An Electrofusion Welding Machine is used to fuse the fitting with the pipe.
The EF Tapping Tee with Underclamp is available in sizes from 40mm x 20mm – 225mm x 63mm.
Materials and General Specifications
| Item | Specifications |
| Standards | AS/NZS 4129 |
| Materials | Polyethelyne (PE) 100 |
| Pressure Rating | PN16, Water | PN10, Gas |
| SDR | 11 - 17 |
| Size | Code |
| 40mm x 20mm | EFTTU04020 |
| 40mm x 25mm | EFTTU04025 |
| 40mm x 32mm | EFTTU04032 |
| 50mm x 32mm | EFTTU05032 |
| 63mm x 32mm | EFTTU06332 |
| 63mm x 40mm | EFTTU06340 |
| 63mm x 63mm | EFTTU06363 |
| 75mm x 32mm | EFTTU07532 |
| 90mm x 32mm | EFTTU09032 |
| 90mm x 63mm | EFTTU09063 |
| 110mm x 32mm | EFTTU11032 |
| 110mm x 40mm | EFTTU11040 |
| 110mm x 63mm | EFTTU11063 |
| 125mm x 32mm | EFTTU12532 |
| 125mm x 63mm | EFTTU12563 |
| 160mm x 32mm | EFTTU16032 |
| 160mm x 40mm | EFTTU16040 |
| 160mm x 63mm | EFTTU16063 |
| 180mm x 32mm | EFTTU18032 |
| 180mm x 63mm | EFTTU18063 |
| 200mm x 32mm | EFTTU20032 |
| 200mm x 63mm | EFTTU20063 |
| 225mm x 32mm | EFTTU22532 |
| 225mm x 63mm | EFTTU22563 |
The EF Tapping Tee with Underclamp is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
