Description

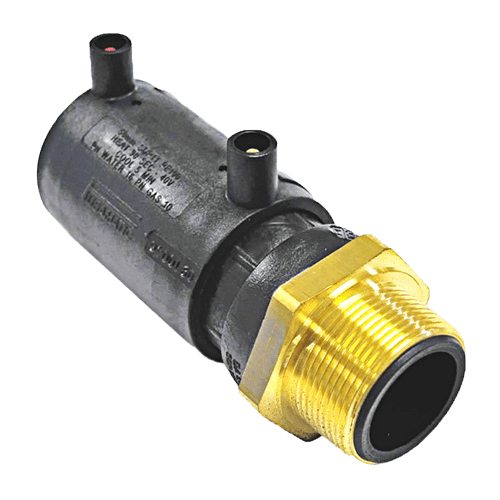

The EF Transition Coupler – Male is commonly used to connect various types of metallic pipes to Polyethylene (PE) Pipe systems. A fabricated fitting comprising of a coated CW617N brass male BSP threaded spigot that is supplied with an Electrofusion Coupler that has 4mm pins to suit 16 Bar Water and 10 Bar Gas connections designed to be fused together using an Electrofusion Machine.
The EF Transition Coupler – Male is available in sizes from 20mm x 1/2″ – 125mm x 4″.
Materials and General Specifications
| Item | Specifications |
| Standards | AS/NZS 4129 | MS58 |
| Materials | Polyethelyne (PE) 100 | Coated CW617N Brass |
| Pressure Rating | PN16, Water | PN10, Gas |
| SDR | 11 - 17 |
| Fitting Details | Male BSP Thread |
Download the Technical Data Sheet
| Size | Code |
| 20mm x ½" | EFTCM02012 |
| 25mm x 3/4" | EFTCM02534 |
| 32mm x 3/4" | EFTCM03234 |
| 32mm x 1" | EFTCM0321 |
| 32mm x 1¼" | EFTCM032114 |
| 32mm x 1½" | EFTCM032112 |
| 40mm x 1" | EFTCM0401 |
| 40mm x 1¼" | EFTCM040114 |
| 40mm x 1½" | EFTCM040112 |
| 40mm x 2" | EFTCM0402 |
| 50mm x 1" | EFTCM0501 |
| 50mm x 1¼" | EFTCM050114 |
| 50mm x 1½" | EFTCM050112 |
| 50mm x 2" | EFTCM0502 |
| 63mm x 1¼" | EFTCM063114 |
| 63mm x 1½" | EFTCM063112 |
| 63mm x 2" | EFTCM0632 |
| 75mm x 2" | EFTCM0752 |
| 75mm x 2½" | EFTCM075212 |
| 90mm x 3" | EFTCM0903 |
| 110mm x 4" | EFTCM1104 |
| 125mm x 4" | EFTCM1254 |
The EF Transition Coupler – Male is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
