Description

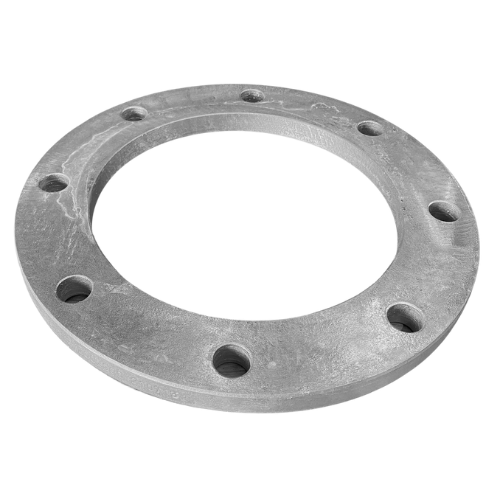

The Galvanised Steel Backing Ring | ANSI 150 is a backing ring that has been designed for high pressure pipe applications and is predominately used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting and are often required for high-pressure pipe application
The Galvanised Steel Backing Ring | ANSI 150 varies in sizes from 20mm – 800mm.
Download the Technical Data Sheet
| Nominal Pipe OD (mm) | Code |
| 20 | BWBRA020 |
| 25 | BWBRA025 |
| 32 | BWBRA032 |
| 40 | BWBRA040 |
| 50 | BWBRA050 |
| 63 | BWBRA063 |
| 75 | BWBRA075 |
| 90 | BWBRA090 |
| 110 | BWBRA110 |
| 125 | BWBRA125 |
| 140 | BWBRA140 |
| 160 | BWBRA160 |
| 180 | BWBRA180 |
| 200 | BWBRA200 |
| 225 | BWBRA225 |
| 250 | BWBRA250 |
| 280 | BWBRA280 |
| 315 | BWBRA315 |
| 355 | BWBRA355 |
| 400 | BWBRA400 |
| 450 | BWBRA450 |
| 500 | BWBRA500 |
| 560 | BWBRA560 |
| 630 | BWBRA630 |
| 710 | BWBRA710 |
| 800 | BWBRA800 |
The Galvanised Steel Backing Ring | ANSI 150 is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
