Description

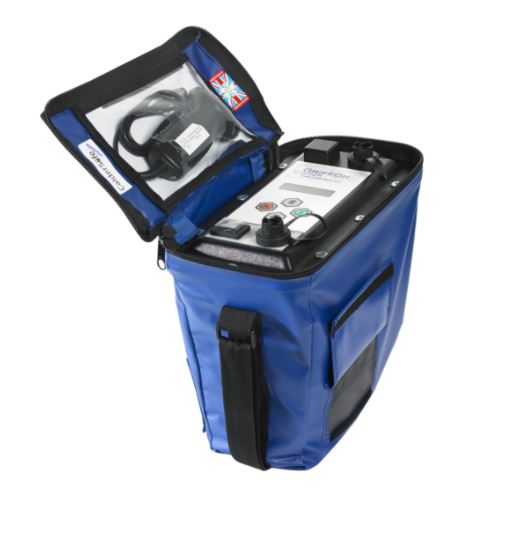

Hire Griffon Electrofusion Welder (20 – 200mm range)
The Hire Griffon Electrofusion Welder is capable of fusing all brands of fittings up to 200mm. Using a high volume cooling fan provides reliability for continuous welding in all conditions. The Hire Calder Griffon Electrofusion Unit is fitted with a Fusamatic output lead for automatically reading smart fittings. A Barcode scanner, essential for welding all brands of fittings and the option to manually enter the weld time and voltage from 8v-48v.
Fusion Qld also offer the Griffon Lightweight Electrofusion Welder for purchase from both our Fusion Queensland and Fusion Melbourne locations. We can provide annual calibration and general repairs and maintenance of all Fusion Electrofusion Machines.
Features
Friendly user interface with helpful on-screen prompts
Remaining joint record memory capacity
Time until next service
Input supply voltage
Time and date
Hire Griffon Electrofusion Welder
| Technical Specification | |
| Input voltage [Vac] | 230v |
| Input frequency [Hz] | 40 – 60Hz |
| Input current [Max. A] | 8A |
| Input power | 3450VA |
| Output voltage [Vac RMS] | 8 – 48v |
| Output current [Continuous. Aac RMS] | 50A |
| Environmental protection | IP55 |
| Data recording capacity | 2000 Records |
| Coupling size range | 16 – 200mm |
| Mechanical information | |
| Dimensions [HxWxL] | 275 x 215 x 385mm |
| Weight [Kg] | 7.0 & 9.0Kg |
| Case material | ABS |
| Mains input cable length [m] | 3m |
| Fusion output cable length [m] | 3m |
Want to hire the Griffon Electrofusion Welder?
Follow the link to make your enquiry today.
Caldervale Technology
Since the 1970`s Fusion Equipment have been pioneers in the products to assist in the installation of polyethylene pipe. To the distribution and supply of gas and water in the United Kingdom. These included socket fusion and saddle fusion tools, butt fusion machines, and later electrofusion equipment.
Caldervale Technology re-entered the same market early in the final decade of the 20th century. After many years also in the supply of related products under the banner of Calder Technical Services.
Both companies independently developed and supplied electrical, electronic and mechanical products. The move towards the adoption and use of plastic piping increased worldwide, expanding into landfill gas reclamation, waste water and sewerage as these markets also adopted plastic piping.
With almost 50 years’ experience in the supply of fusion jointing equipment, both separately and now together. Under the leadership of principle directors and proprietors Paul Myers and Gordon Lilley, you can be sure that when you choose Caldervale & Fusion as your supply partner you get much more than a product, you`ve chosen companies who have supported their partners through global recessions and enormous technological changes, companies who truly understand your needs and guarantee to be there when you need us.
Follow the link to learn more about Caldertech’s great range of Equipment & Tooling – Caldertech
