Description

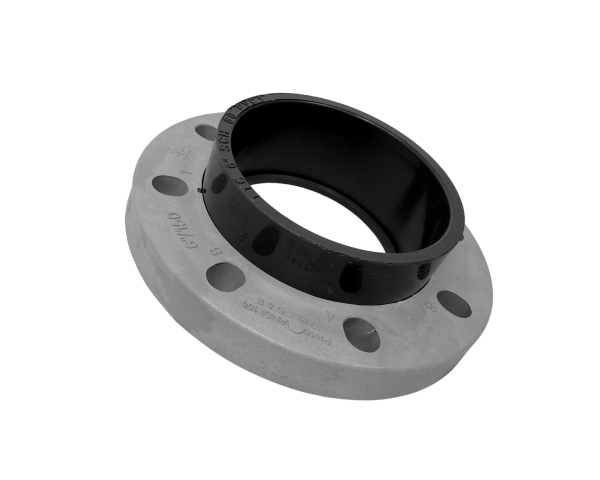

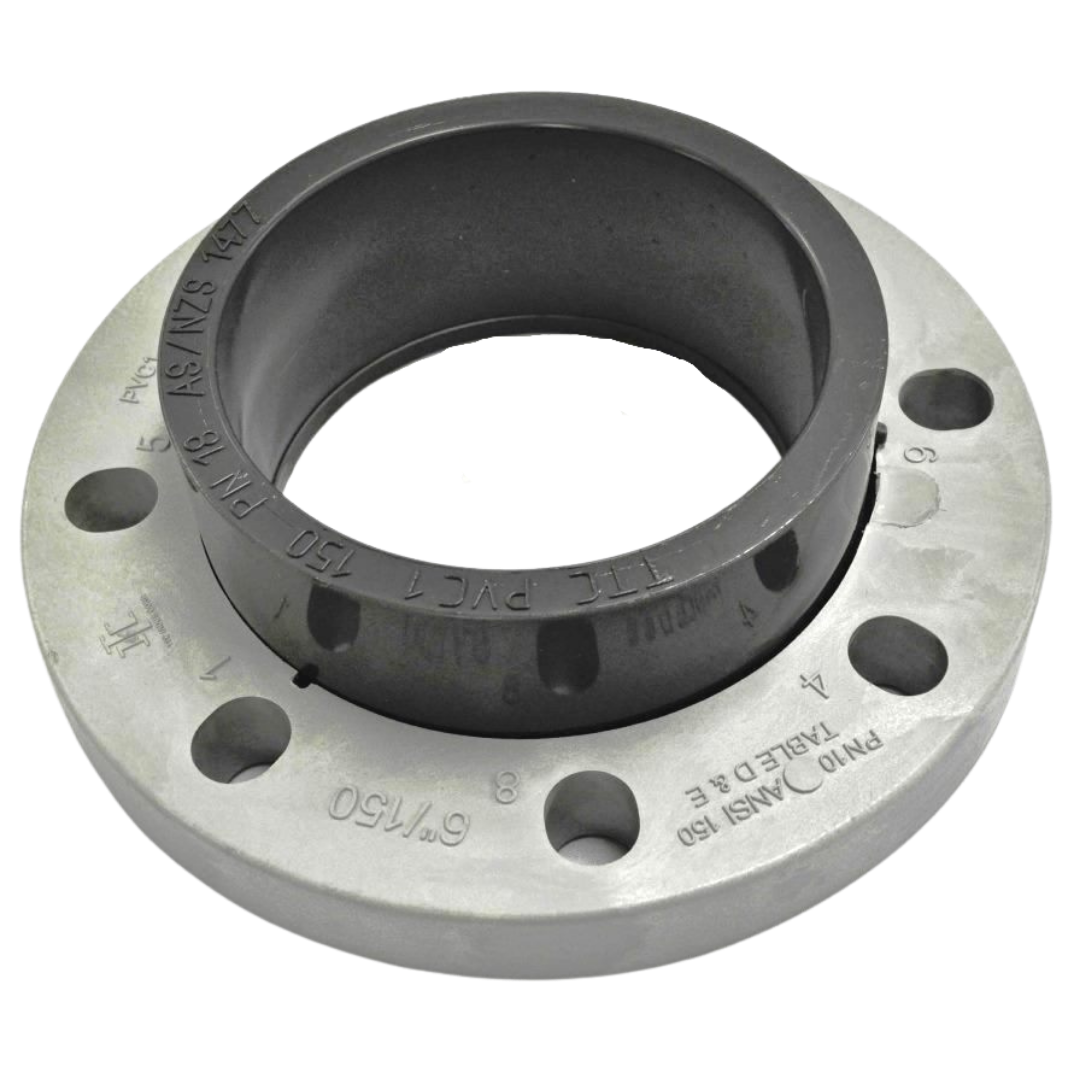

The uPVC Van Stone Flange (Multidrilled) is a high pressure flange that is grey in colour and predominately used to attach pipe to a bolted fitting. The uPVC Van Stone Flange has a rotating ring and is compatible with Table D, Table E or ANSI drill patterns.
The uPVC Van Stone Flange (Multidrilled) varies in sizes from 80mm – 300mm.
Download the Technical Data Sheet
| Size | Ctn Qty | PN Rating | Code |
| 80mm | 24 | 18 | TFLR080T |
| 100mm | 20 | 18 | TFLR100T |
| 125mm | 12 | 15 | TFLR125T |
| 150mm | 6 | 12 | TFLR150T |
| 200mm | 4 | 12 | TFLR200T |
| 225mm | 2 | 20 | TFLR225T |
| 250mm | 2 | 12 | TFLR250T |
| 300mm | 2 | 12 | TFLR300T |
The uPVC Van Stone Flange (Multidrilled) is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
