Description

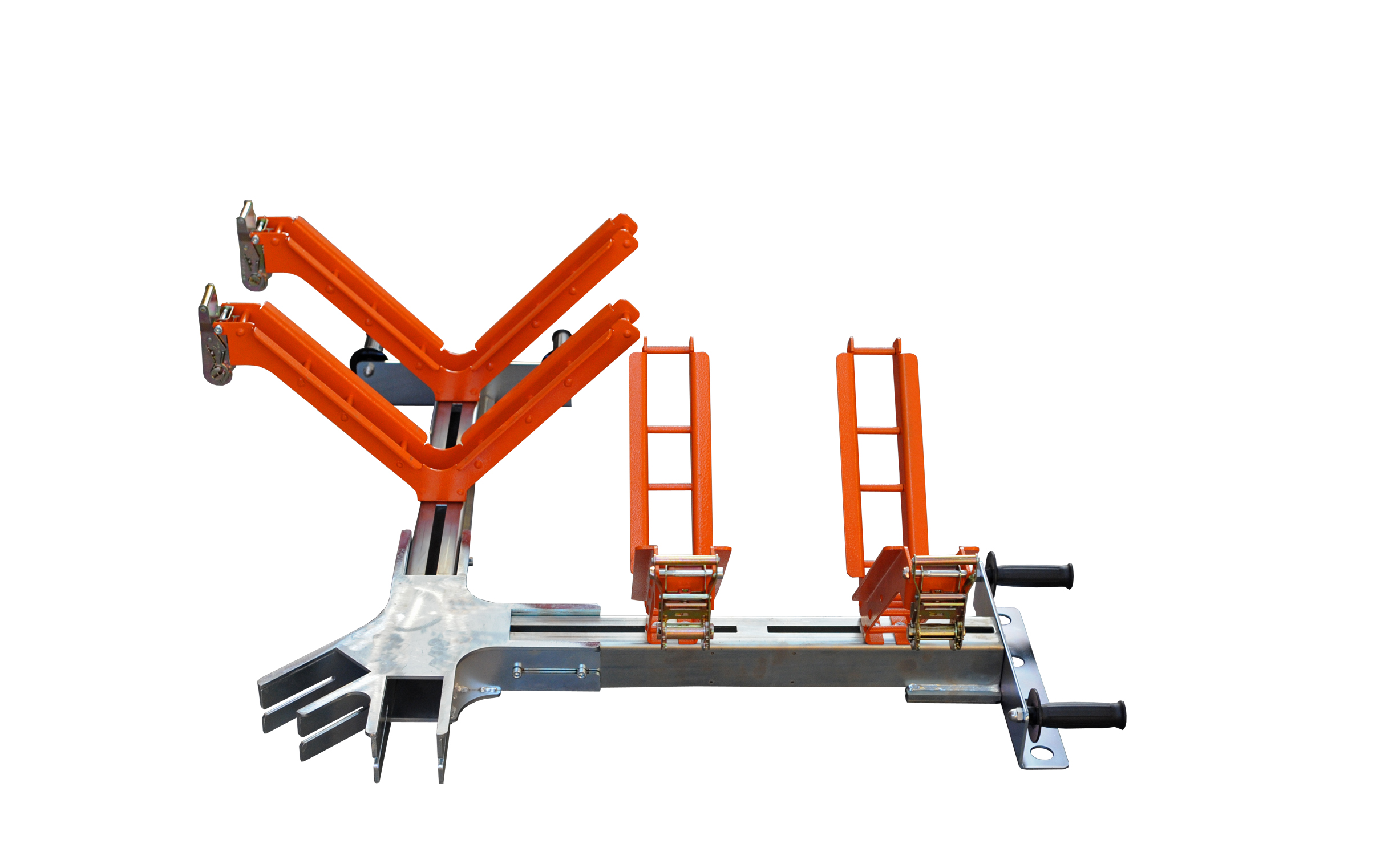

The Ritmo Aligner Clamp 125 – 500 is an essential and professional tool for the alignment and support of pipes during electrofusion from 125 mm to 500 mm.
The Aligner is entirely made of steel, featuring a central adjustable joint and pipe fastening clamps fixed on axes.
The adjustable joint can be set on 4 different working positions to allow welding at preset angles such as 45° and 90°, “in line” and T welding. The axes have V-shaped clamps positioned on them, which are equipped with pipe fastening belts. The system, along with fixing the pipe to the clamp, also serves as a centering device.
Each axis has 2 guides on which the clamps are able to slide.
Practical side handles ensure an easy grip during movement and positioning, including throughout the preparation of and during welding procedures.
The aligner is available in two configurations: 2 axes and 3 axes (to weld T fittings).
The Ritmo Aligner Clamp 125mm – 500mm comes complete with four clamps and a service spanner.
| Item | Description |
| Working Range | 120mm - 500mm |
| Welding | 45° - 90° - in line - T |
| Dimensions (2 axes) | 1815mm x 610mm x 410mm |
| Dimensions (3 axes) | 1815mm x 1230mm x 410mm |
| Weight (2 axes) | 38kg |
| Weight (3 axes) | 52kg |
Fusion Qld are the exclusive distributor of Ritmo pipe scrapers in Queensland, however can distribute from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
