Description

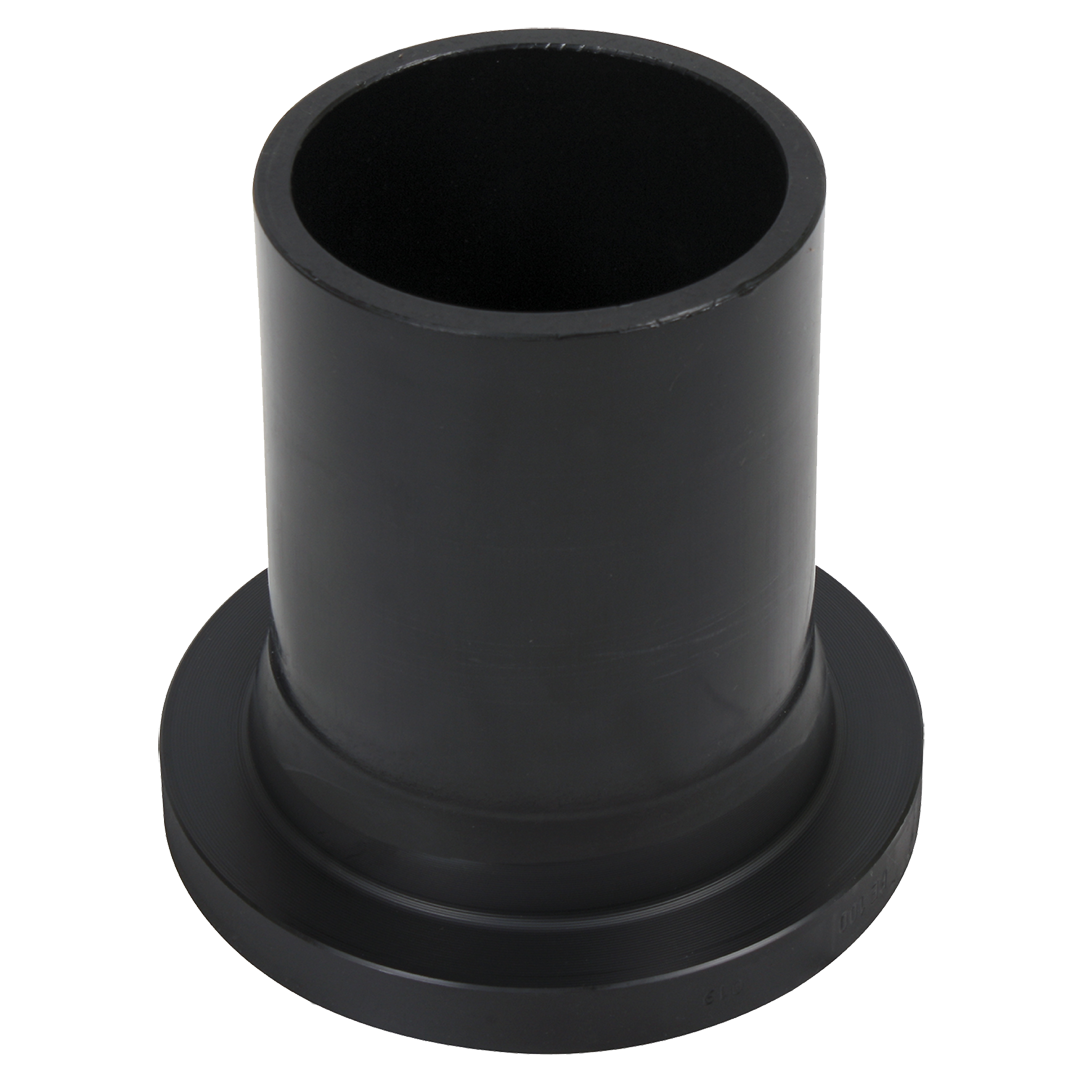

The Stub Flange Long SDR17 is a high pressure elongated flange that is typically used in pipeline applications from Civil to Irrigation. The long spigot end is designed to be connected to pipe or fittings using either the butt welding method or Electrofusion welding. The Stub Flange end is designed to be mated with backing rings in either Galvanised or Stainless Steel depending on your application.
The Stub Flange Long SDR17 varies in sizes from 63mm – 630mm.
Download the Technical Data Sheet
| Size | Code |
| 63mm | BWSFL1763 |
| 75mm | BWSFL1775 |
| 90mm | BWSFL1790 |
| 110mm | BWSFL17110 |
| 125mm | BWSFL17125 |
| 140mm | BWSFL17140 |
| 160mm | BWSFL17160 |
| 180mm | BWSFL17180 |
| 200mm | BWSFL17200 |
| 225mm | BWSFL17225 |
| 250mm | BWSFL17260 |
| 280mm | BWSFL17280 |
| 315mm | BWSFL17315 |
| 355mm | BWSFL17355 |
| 400mm | BWSFL17400 |
| 450mm | BWSFL17450 |
| 500mm | BWSFL17500 |
| 560mm | BWSFL17560 |
| 630mm | BWSFL17630 |
The Stub Flange Long SDR17 is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
